YAHSHIYAN DORMITORY
Sector: Social facility
Location: Kirikkale – Mugla / Turkey
Rawwatersource: Greywater
Capacity: 62,4m3/day
In the dormitories in Kirikkale and Mugla greywater from washstands, bathrooms, kitchens and laundries is treated by ultra filtration and used to water garden.
Greywater is chlorinated as pre-disinfection and basket-type screen is used to remove big particles.

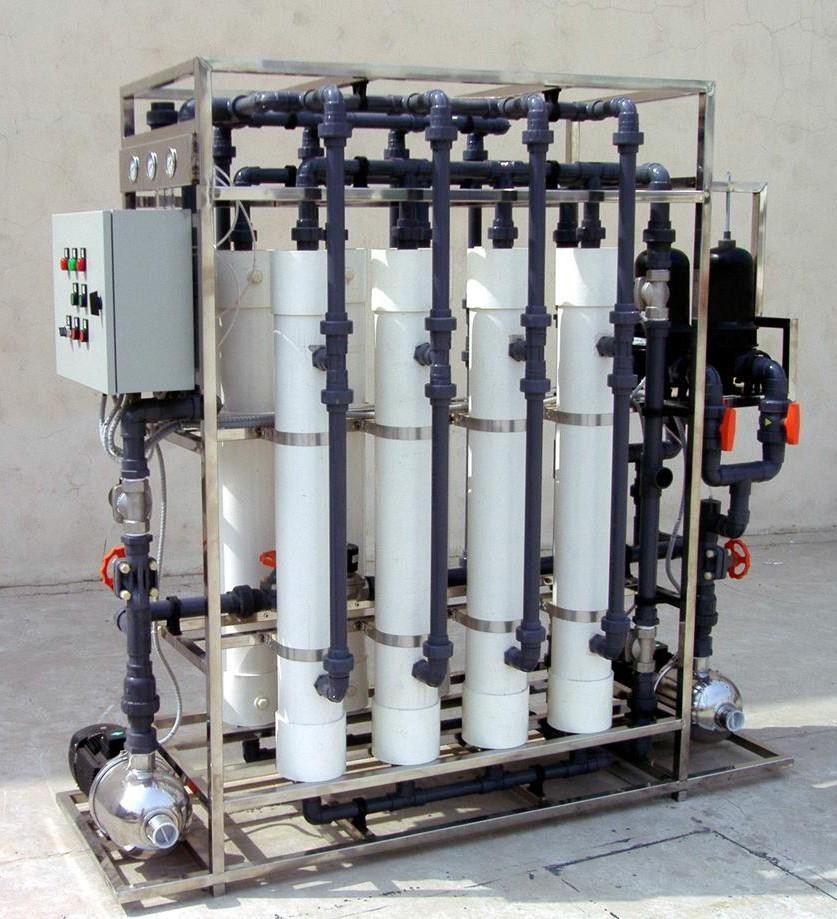

After physical contamination removal from greywater by using screen water is stored and fed into the bag filter with stainless steel housing for pre- filtration. Bag filters provide filtration with 100 micron sensitivity; water from bag filters is directed to the multi layer sand filter with tfRP housing and 2.6 m3/hour capacity. After sand filter, 2 active carbon filters connected in series and with tfRP housing provide odor and organic matter contamination. 2.1 m3 water is filtered by package ultra filtration each hour to obtain sensitive filtration of water with dense and fluctuating contamination load. Water from ultra filtration is chlorinated and stored in product water tank.
Greywater in student dormitories is treated to water garden and landscape.
